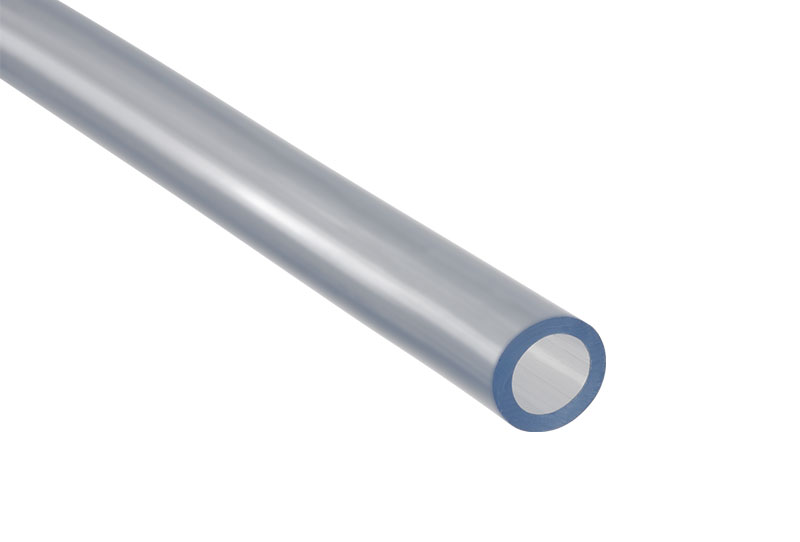

Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.MH3/6
Internal Dia. Inches4∕34"
Internal Dia. mm3
External Dia mm6.0
Wall Thickness Overall mm1.5
Weight kg/m0.03
Min Bend Radius24
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH4/6
Internal Dia. Inches⅙
Internal Dia. mm4
External Dia mm6.0
Wall Thickness Overall mm1
Weight kg/m0.02
Min Bend Radius32
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH4/10
Internal Dia. Inches⅙
Internal Dia. mm4
External Dia mm10.0
Wall Thickness Overall mm3.0
Weight kg/m0.08
Min Bend Radius32
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH5/8
Internal Dia. Inches⅕"
Internal Dia. mm5
External Dia mm8.0
Wall Thickness Overall mm1.5
Weight kg/m0.04
Min Bend Radius40
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH6/9
Internal Dia. Inches¼"
Internal Dia. mm6
External Dia mm9.0
Wall Thickness Overall mm1.5
Weight kg/m0.04
Min Bend Radius48
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH6/12
Internal Dia. Inches¼"
Internal Dia. mm6
External Dia mm12.0
Wall Thickness Overall mm3
Weight kg/m0.10
Min Bend Radius48
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH8/11
Internal Dia. Inches5∕16"
Internal Dia. mm8
External Dia mm11.0
Wall Thickness Overall mm1.5
Weight kg/m0.06
Min Bend Radius64
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH8/14
Internal Dia. Inches5∕16"
Internal Dia. mm8
External Dia mm14.0
Wall Thickness Overall mm3
Weight kg/m0.13
Min Bend Radius64
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH9/12
Internal Dia. InchesMetric
Internal Dia. mm9
External Dia mm12.0
Wall Thickness Overall mm1.5
Weight kg/m0.06
Min Bend Radius72
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH10/13
Internal Dia. Inches⅜"
Internal Dia. mm10
External Dia mm13.0
Wall Thickness Overall mm1.5
Weight kg/m0.07
Min Bend Radius80
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH10/16
Internal Dia. Inches⅜"
Internal Dia. mm10
External Dia mm16.0
Wall Thickness Overall mm3.0
Weight kg/m0.15
Min Bend Radius80
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH12/15
Internal Dia. Inches½"
Internal Dia. mm12
External Dia mm15.0
Wall Thickness Overall mm1.5
Weight kg/m0.08
Min Bend Radius96
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH12/16
Internal Dia. Inches½"
Internal Dia. mm12
External Dia mm16.0
Wall Thickness Overall mm2.0
Weight kg/m0.11
Min Bend Radius96
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH12/18
Internal Dia. Inches½"
Internal Dia. mm12
External Dia mm18.0
Wall Thickness Overall mm3
Weight kg/m0.17
Min Bend Radius96
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH13/19
Internal Dia. Inches½"
Internal Dia. mm13
External Dia mm19.0
Wall Thickness Overall mm3.0
Weight kg/m0.19
Min Bend Radius104
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH16/22
Internal Dia. Inches⅝"
Internal Dia. mm16
External Dia mm22.0
Wall Thickness Overall mm3
Weight kg/m0.22
Min Bend Radius128
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH19/22
Internal Dia. Inches¾"
Internal Dia. mm19
External Dia mm22.0
Wall Thickness Overall mm1.5
Weight kg/m0.12
Min Bend Radius152
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH19/25
Internal Dia. Inches¾"
Internal Dia. mm19
External Dia mm25.0
Wall Thickness Overall mm3
Weight kg/m0.26
Min Bend Radius152
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH22/28
Internal Dia. Inches⅞"
Internal Dia. mm22
External Dia mm28.0
Wall Thickness Overall mm3.0
Weight kg/m0.29
Min Bend Radius176
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH25/31
Internal Dia. Inches1"
Internal Dia. mm25
External Dia mm31.0
Wall Thickness Overall mm3
Weight kg/m0.32
Min Bend Radius200
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH32/38
Internal Dia. Inches1¼"
Internal Dia. mm32
External Dia mm38.0
Wall Thickness Overall mm3.0
Weight kg/m0.41
Min Bend Radius256
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH32/41
Internal Dia. Inches1¼"
Internal Dia. mm32
External Dia mm41.0
Wall Thickness Overall mm4.5
Weight kg/m0.63
Min Bend Radius256
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH38/47
Internal Dia. Inches1½"
Internal Dia. mm38
External Dia mm47.0
Wall Thickness Overall mm4.5
Weight kg/m0.74
Min Bend Radius304
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH45/54
Internal Dia. Inches1¾"
Internal Dia. mm45
External Dia mm54.0
Wall Thickness Overall mm4.5
Weight kg/m0.86
Min Bend Radius360
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
Product Ref.MH50/62
Internal Dia. Inches2"
Internal Dia. mm50
External Dia mm62.0
Wall Thickness Overall mm6.0
Weight kg/m1.30
Min Bend Radius400
Vacuum m of H2O-
Working Pressure Bar-
Coil Length Metres30
(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.
