Hi Visibility Braided PVC Hose

agricultureautomotiveconstructiondomesticindustrialleisuremarinerail

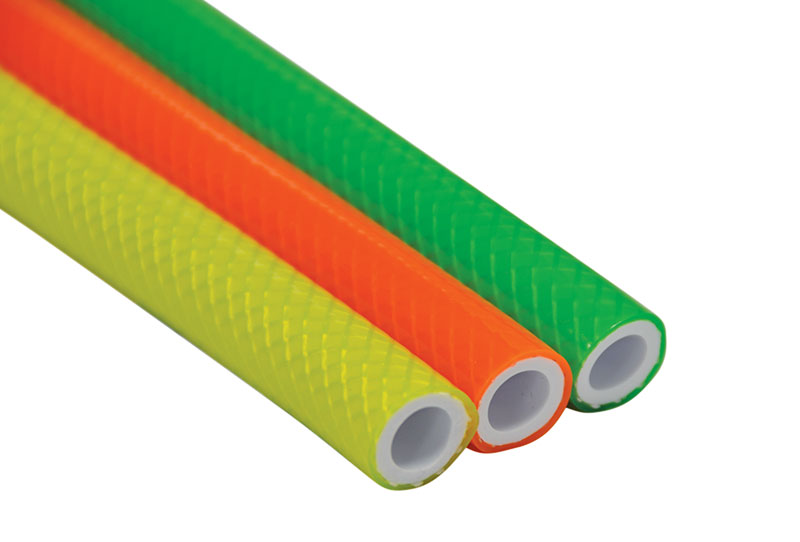

A lightweight high visibility PVC hose, manufactured from two layers of clear flexible PVC bonded together encapsulating high tensile polyester fibres. Tough, flexible and extremely durable under normal operating conditions. It is resistant to a wide range of chemicals. Minimum frictional loss is achieved by the smooth bore.

Flex
Abrasion
Smooth Outer Yes
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.HNHIVIZ10
Internal Dia. Inches⅕"
Internal Dia. mm5.0
External Dia mm10.0
Wall Thickness Overall mm2.5
Weight kg/m0.08
Min Bend Radius33
Vacuum m of H2O-
Working Pressure Bar25
Coil Length Metres30 / 100
Product Ref.HNHIVIZ30
Internal Dia. Inches¼"
Internal Dia. mm6.3
External Dia mm11.4
Wall Thickness Overall mm2.6
Weight kg/m0.09
Min Bend Radius41
Vacuum m of H2O-
Working Pressure Bar22
Coil Length Metres30 / 100
Product Ref.HNHIVIZ40
Internal Dia. Inches5∕16"
Internal Dia. mm8.0
External Dia mm13.2
Wall Thickness Overall mm2.6
Weight kg/m0.11
Min Bend Radius52
Vacuum m of H2O-
Working Pressure Bar21
Coil Length Metres30 / 100
Product Ref.HNHIVIZ45
Internal Dia. Inches⅜"
Internal Dia. mm10.0
External Dia mm16.0
Wall Thickness Overall mm3.0
Weight kg/m0.15
Min Bend Radius65
Vacuum m of H2O-
Working Pressure Bar20
Coil Length Metres30 / 100
Product Ref.HNHIVIZ50
Internal Dia. Inches½"
Internal Dia. mm12.5
External Dia mm18.2
Wall Thickness Overall mm2.9
Weight kg/m0.18
Min Bend Radius81
Vacuum m of H2O-
Working Pressure Bar16
Coil Length Metres30 / 100
Product Ref.HNHIVIZ70
Internal Dia. Inches⅝"
Internal Dia. mm16.0
External Dia mm23.0
Wall Thickness Overall mm3.5
Weight kg/m0.28
Min Bend Radius104
Vacuum m of H2O-
Working Pressure Bar15
Coil Length Metres30 / 100
Product Ref.HNHIVIZ80
Internal Dia. Inches¾"
Internal Dia. mm19.0
External Dia mm25.6
Wall Thickness Overall mm3.3
Weight kg/m0.30
Min Bend Radius124
Vacuum m of H2O-
Working Pressure Bar15
Coil Length Metres30 / 100
Product Ref.HNHIVIZ90
Internal Dia. Inches1"
Internal Dia. mm25.0
External Dia mm32.6
Wall Thickness Overall mm3.8
Weight kg/m0.45
Min Bend Radius163
Vacuum m of H2O-
Working Pressure Bar13
Coil Length Metres30 / 100
Product Ref.HNHIVIZ100
Internal Dia. Inches1¼"
Internal Dia. mm32.0
External Dia mm41.6
Wall Thickness Overall mm4.8
Weight kg/m0.72
Min Bend Radius208
Vacuum m of H2O-
Working Pressure Bar8
Coil Length Metres30
Product Ref.HNHIVIZ110
Internal Dia. Inches1½"
Internal Dia. mm38.0
External Dia mm48.0
Wall Thickness Overall mm5.0
Weight kg/m0.88
Min Bend Radius247
Vacuum m of H2O-
Working Pressure Bar8
Coil Length Metres30
Product Ref.HNHIVIZ160
Internal Dia. Inches2"
Internal Dia. mm50.0
External Dia mm61.6
Wall Thickness Overall mm5.8
Weight kg/m1.31
Min Bend Radius325
Vacuum m of H2O-
Working Pressure Bar7
Coil Length Metres30

(i) Maximum working pressure is based on a factor of safety of 4:1 for air and 3:1 for water on short term burst pressure at 20°C. If the temperature increases, please refer to the
temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

HN can be used to convey many liquids and gases under pressure.
Applications include factory air lines, pneumatic equipment & general workshop use.

Construction

Two layers of clear flexible PVC
bonded together encapsulating high tensile polyester fibres.

Colour

Standard – Hi-viz Yellow, Orange and Green with White Liner
Other colours available subject to minimum order quantity

Temperature Range

-10°C to +60°C

Size Range

3⁄16”” to 2”
Other sizes available subject to minimum order quantity

Standard Length

30m & 100m Coils
Other lengths available subject to minimum order quantity

Special Features

  • Hi visibility colour for standing out
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance

Compliance
