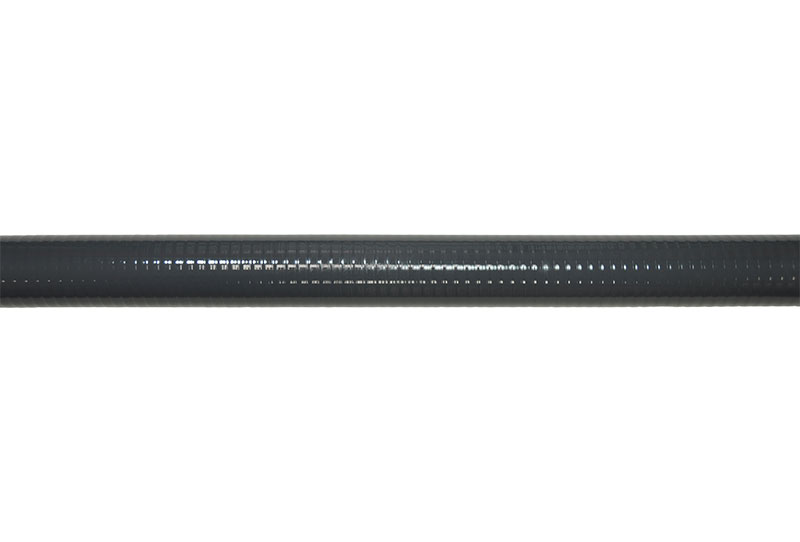

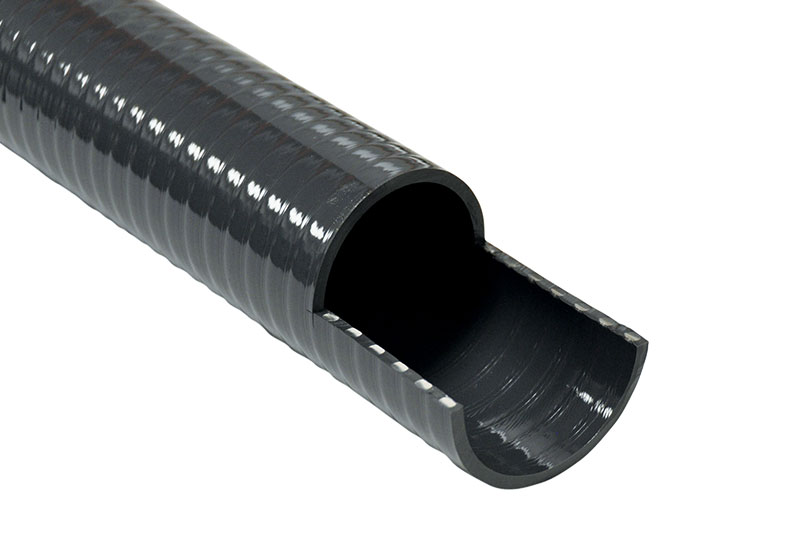

SPH

Swimming Pool Hose

constructiondomesticindustrialleisuremarine

Designed specifically for the swimming pool industry as an alternative to rigid hoses. It has a smooth outer for easy cleaning and has outstanding resistance to the effects of weather, is tough, flexible and extremely durable. Minimum frictional loss is achieved by the smooth bore. Excellent chemical resistance.

Flex
Abrasion
Smooth Outer Yes
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.SPHM14/20
Internal Dia. InchesMetric
Internal Dia. mm14.0
External Dia mm20.0
Wall Thickness Overall mm3
Weight kg/m0.21
Min Bend Radius60
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM16/21.5
Internal Dia. InchesMetric
Internal Dia. mm16.0
External Dia mm21.5
Wall Thickness Overall mm2.75
Weight kg/m0.21
Min Bend Radius65
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM20/25
Internal Dia. InchesMetric
Internal Dia. mm20.0
External Dia mm25.0
Wall Thickness Overall mm2.5
Weight kg/m0.25
Min Bend Radius80
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM20/25.5
Internal Dia. InchesMetric
Internal Dia. mm20.0
External Dia mm25.5
Wall Thickness Overall mm2.75
Weight kg/m0.25
Min Bend Radius80
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM25/32
Internal Dia. InchesMetric
Internal Dia. mm25.0
External Dia mm32.0
Wall Thickness Overall mm3.5
Weight kg/m0.40
Min Bend Radius100
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM25/33
Internal Dia. InchesMetric
Internal Dia. mm25.0
External Dia mm33.0
Wall Thickness Overall mm4
Weight kg/m0.48
Min Bend Radius100
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM25/33.9
Internal Dia. InchesMetric
Internal Dia. mm25.0
External Dia mm33.9
Wall Thickness Overall mm4.45
Weight kg/m0.50
Min Bend Radius100
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM32/40
Internal Dia. InchesMetric
Internal Dia. mm32.0
External Dia mm40.0
Wall Thickness Overall mm4
Weight kg/m0.60
Min Bend Radius128
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.SPHM35/42.3
Internal Dia. InchesMetric
Internal Dia. mm35.0
External Dia mm42.3
Wall Thickness Overall mm3.65
Weight kg/m0.55
Min Bend Radius140
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.SPHM40/48
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm48.0
Wall Thickness Overall mm4
Weight kg/m0.72
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.SPHM40/48.25
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm48.3
Wall Thickness Overall mm4.125
Weight kg/m0.73
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.SPHM40/48.5
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm48.5
Wall Thickness Overall mm4.25
Weight kg/m0.73
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.SPHM40/48.9
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm48.9
Wall Thickness Overall mm4.45
Weight kg/m0.79
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.SPHM40/50.3
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm50.3
Wall Thickness Overall mm5.15
Weight kg/m0.93
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.SPHM51/63
Internal Dia. InchesMetric
Internal Dia. mm51.0
External Dia mm63.0
Wall Thickness Overall mm6
Weight kg/m1.38
Min Bend Radius210
Vacuum m of H2O7
Working Pressure Bar5
Coil Length Metres30 / 50

(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

Spa bath, swimming pools as an alternative to rigid hoses.

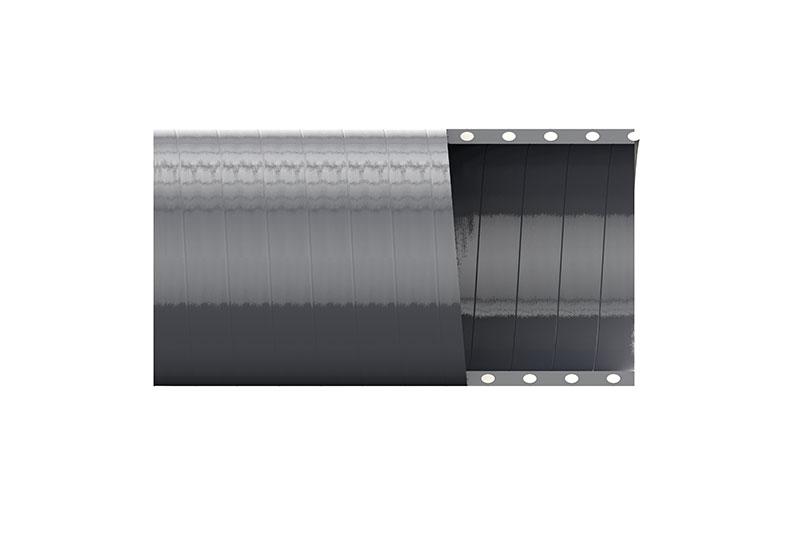

Construction

Manufactured from a rigid
crush resistant anti-shock PVC spiral helix encapsulated in a grey flexible PVC cover. Smooth internal bore
with smooth outer surface.

Colour

Standard – Grey
Other colours available subject to minimum order quantity

Temperature Range

-10°C to +55°C

Size Range

14mm to 51mm

Standard Length

30m Coils
50m Coils also available

Special Features

  • Smooth outer for easy cleaning
  • Tough, flexible and extremely durable
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance
