LAH

Lightweight Air Hose

agricultureautomotivedefencedomesticindustrialleisuremarinerail

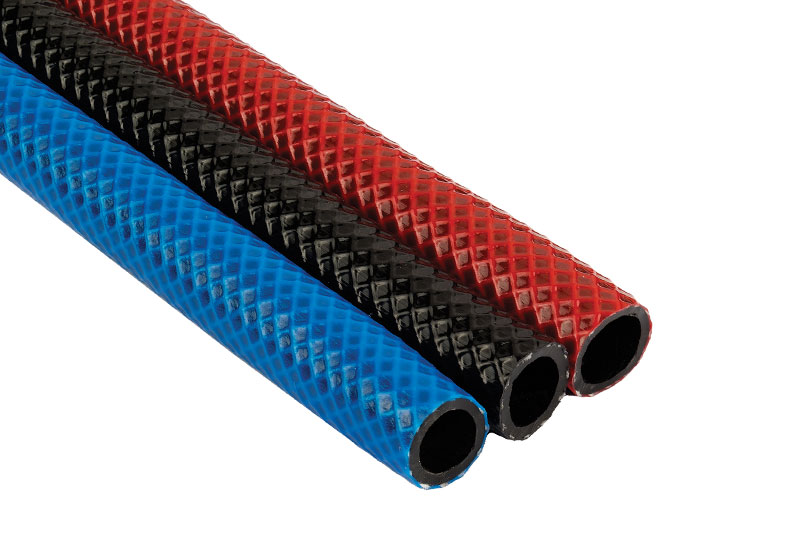

LAH is a lightweight multi-purpose flexible polyester reinforced PVC hose for general workshop use & air tools. Manufactured using an advanced extrusion process, LAH offers excellent kink resistance & abrasion resistance ensuring long lasting use.

Flex
Abrasion
Smooth Outer Yes
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.LAH10
Internal Dia. Inches⅕"
Internal Dia. mm5
External Dia mm9.0
Wall Thickness Overall mm2.0
Weight kg/m0.05
Min Bend Radius26
Vacuum m of H2O-
Working Pressure Bar18
Coil Length Metres30 / 100
Product Ref.LAH30
Internal Dia. Inches¼"
Internal Dia. mm6.3
External Dia mm10.5
Wall Thickness Overall mm2.1
Weight kg/m0.08
Min Bend Radius26
Vacuum m of H2O-
Working Pressure Bar18
Coil Length Metres30
Product Ref.LAH40
Internal Dia. Inches5∕16"
Internal Dia. mm8
External Dia mm12.5
Wall Thickness Overall mm2.3
Weight kg/m0.10
Min Bend Radius31
Vacuum m of H2O-
Working Pressure Bar15
Coil Length Metres30
Product Ref.LAH45
Internal Dia. Inches⅜"
Internal Dia. mm10
External Dia mm14.0
Wall Thickness Overall mm2
Weight kg/m0.10
Min Bend Radius35
Vacuum m of H2O-
Working Pressure Bar13
Coil Length Metres30
Product Ref.LAH50
Internal Dia. Inches½"
Internal Dia. mm12.5
External Dia mm17.0
Wall Thickness Overall mm2.3
Weight kg/m0.15
Min Bend Radius43
Vacuum m of H2O-
Working Pressure Bar11
Coil Length Metres30
Product Ref.LAH70
Internal Dia. Inches⅝"
Internal Dia. mm16
External Dia mm21.0
Wall Thickness Overall mm2.5
Weight kg/m0.22
Min Bend Radius53
Vacuum m of H2O-
Working Pressure Bar11
Coil Length Metres30
Product Ref.LAH80
Internal Dia. Inches¾"
Internal Dia. mm19
External Dia mm24.0
Wall Thickness Overall mm2.5
Weight kg/m0.23
Min Bend Radius60
Vacuum m of H2O-
Working Pressure Bar11
Coil Length Metres30

(i) Maximum working pressure is based on a factor of safety of 4:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the
temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

Ideally suited to applications such as hand held air tools where light
weight & greater flexibility reduce operator fatigue.

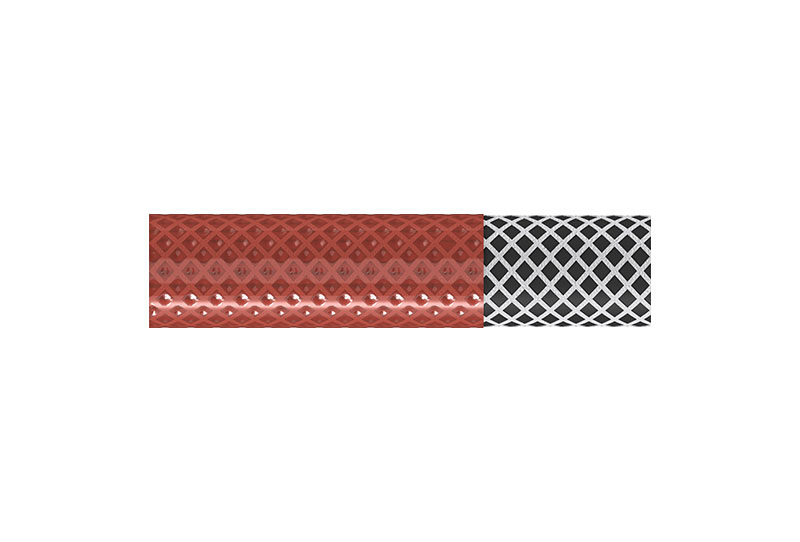

Construction

Two lightweight layers of high quality
PVC bonded together encapsulating high tensile polyester fibres.

Colour

Standard – Black, Blue or Red Cover with Black Liner
Other colours available subject to minimum order quantity

Temperature Range

-10°C to +60°C

Size Range

1⁄4” to 3⁄4”

Standard Length

30m Coils
Other lengths available subject to minimum order quantity

Special Features

  • Kink and abrasion resistant ensuring long lasting use
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance

Compliance
