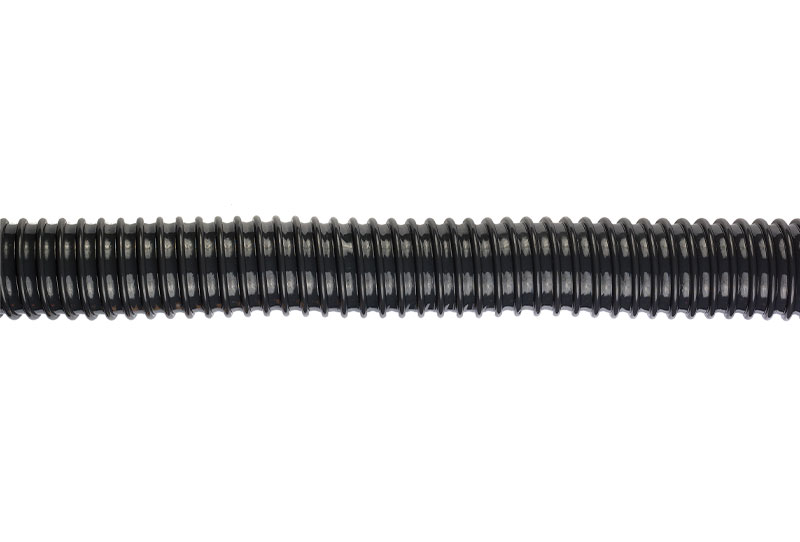

High Flexibility Ducting Hose

agricultureautomotiveconstructiondefenceindustrialmarineminingrail

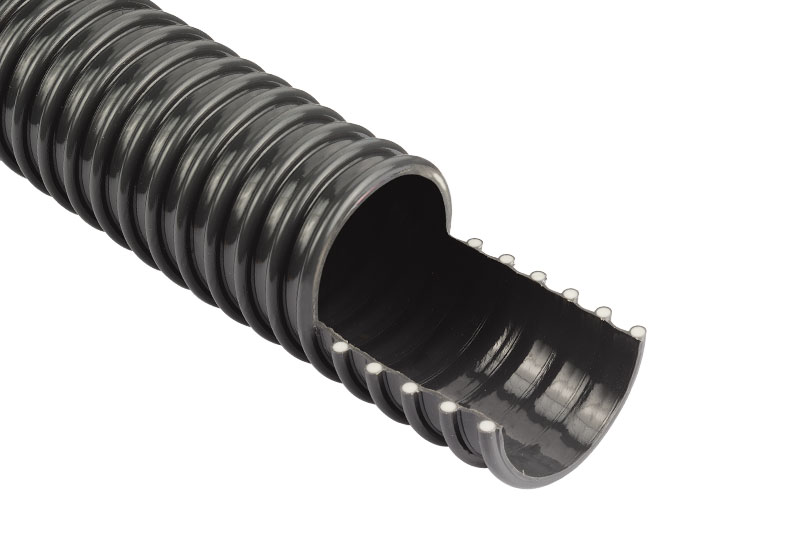

High flexibility PVC ducting hose, reinforced with a semi-rigid crush resistant white PVC helix. It is tough, flexible and extremely durable under normal operating conditions. The cross section is maintained even when highly flexed. Minimum frictional loss is achieved by the smooth bore.

Flex
Abrasion
Smooth Outer No
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.CVLM20
Internal Dia. InchesMetric
Internal Dia. mm20
External Dia mm26.0
Wall Thickness Overall mm3.0
Weight kg/m0.17
Min Bend Radius20
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVL10
Internal Dia. Inches1"
Internal Dia. mm25.4
External Dia mm32.0
Wall Thickness Overall mm3.3
Weight kg/m0.2
Min Bend Radius25
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVLM30
Internal Dia. InchesMetric
Internal Dia. mm30
External Dia mm35.6
Wall Thickness Overall mm2.8
Weight kg/m0.225
Min Bend Radius30
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVL12
Internal Dia. Inches1¼"
Internal Dia. mm32
External Dia mm38.6
Wall Thickness Overall mm3.3
Weight kg/m0.3
Min Bend Radius32
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVLM35
Internal Dia. InchesMetric
Internal Dia. mm35
External Dia mm41.4
Wall Thickness Overall mm3.2
Weight kg/m0.3
Min Bend Radius35
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVL15
Internal Dia. Inches1½"
Internal Dia. mm38
External Dia mm44.8
Wall Thickness Overall mm3.4
Weight kg/m0.34
Min Bend Radius38
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVLM40
Internal Dia. InchesMetric
Internal Dia. mm40
External Dia mm46.6
Wall Thickness Overall mm3.3
Weight kg/m0.33
Min Bend Radius40
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVLM45
Internal Dia. InchesMetric
Internal Dia. mm45
External Dia mm51.6
Wall Thickness Overall mm3.3
Weight kg/m0.37
Min Bend Radius45
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVL20
Internal Dia. Inches2
Internal Dia. mm51.6
External Dia mm58.6
Wall Thickness Overall mm3.5
Weight kg/m0.44
Min Bend Radius51
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres30
Product Ref.CVLM60
Internal Dia. InchesMetric
Internal Dia. mm60
External Dia mm68.0
Wall Thickness Overall mm4.0
Weight kg/m0.56
Min Bend Radius60
Vacuum m of H2O4
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL25
Internal Dia. Inches 2 ½"
Internal Dia. mm63.5
External Dia mm71.5
Wall Thickness Overall mm4.0
Weight kg/m0.65
Min Bend Radius63
Vacuum m of H2O4
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL30
Internal Dia. Inches3
Internal Dia. mm76
External Dia mm85.0
Wall Thickness Overall mm4.5
Weight kg/m0.75
Min Bend Radius76
Vacuum m of H2O4
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVLM80
Internal Dia. InchesMetric
Internal Dia. mm80
External Dia mm89.4
Wall Thickness Overall mm4.7
Weight kg/m0.79
Min Bend Radius80
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL35
Internal Dia. Inches 3 ½"
Internal Dia. mm90
External Dia mm99.0
Wall Thickness Overall mm4.5
Weight kg/m0.8
Min Bend Radius89
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL40
Internal Dia. Inches4
Internal Dia. mm102
External Dia mm112.0
Wall Thickness Overall mm5.0
Weight kg/m1.01
Min Bend Radius102
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL50
Internal Dia. Inches5
Internal Dia. mm127
External Dia mm138.0
Wall Thickness Overall mm5.5
Weight kg/m1.36
Min Bend Radius127
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVLM140
Internal Dia. Inches5½"
Internal Dia. mm140
External Dia mm152.5
Wall Thickness Overall mm6.3
Weight kg/m1.6
Min Bend Radius140
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL60
Internal Dia. Inches6
Internal Dia. mm152
External Dia mm164.0
Wall Thickness Overall mm6.0
Weight kg/m1.76
Min Bend Radius152
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres30
Product Ref.CVL80
Internal Dia. Inches8
Internal Dia. mm204
External Dia mm218.0
Wall Thickness Overall mm7.0
Weight kg/m2.65
Min Bend Radius203
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres10
Product Ref.CVL100
Internal Dia. Inches10
Internal Dia. mm254
External Dia mm268.0
Wall Thickness Overall mm7.0
Weight kg/m3.3
Min Bend Radius254
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres10

(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

Industrial vacuum cleaners and for
the extraction of fumes, wood chippings & sawdust.

Construction

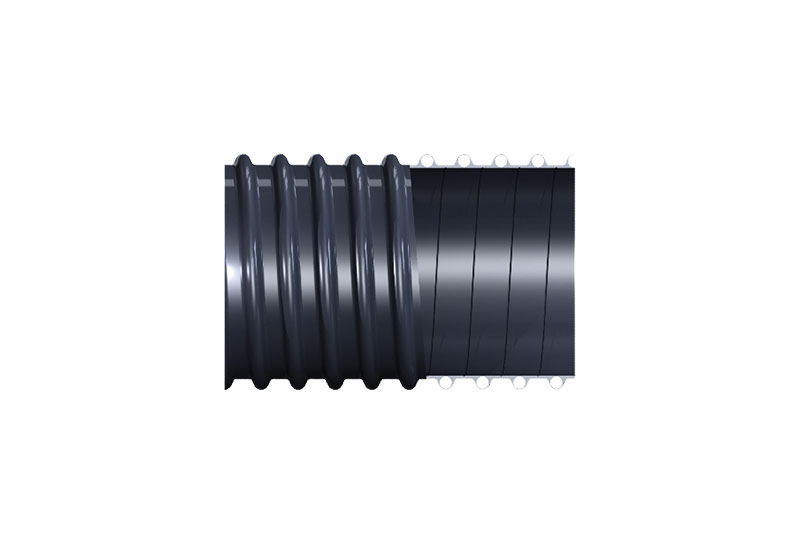

Crush resistant anti-shock PVC spiral helix encapsulated in a dark grey flexible PVC cover, with a smooth inside wall.

Colour

Standard – Dark Grey

Temperature Range

-10°C to +55°C

Size Range

1” to 10”

Standard Length

30m Coils Up to 6″ 10m Coils Over 6″
Other lengths available subject to minimum order quantity

Special Features

  • Tough, flexible and extremely durable
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance

Compliance
