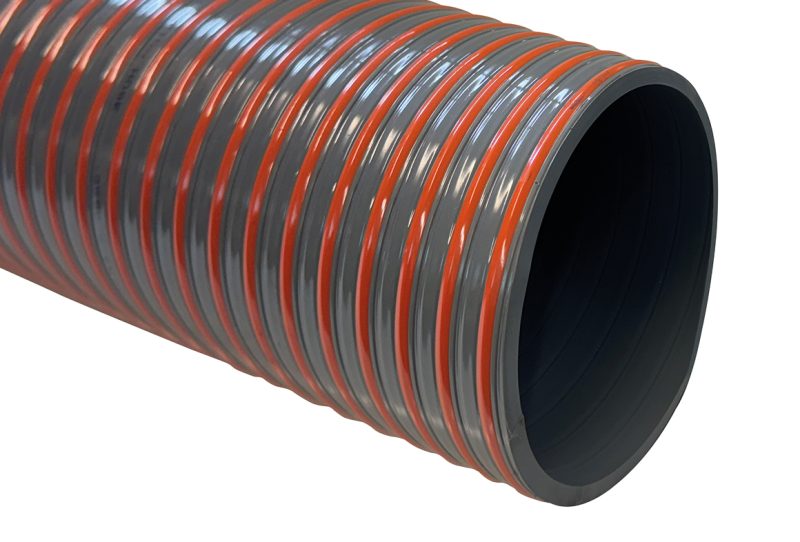

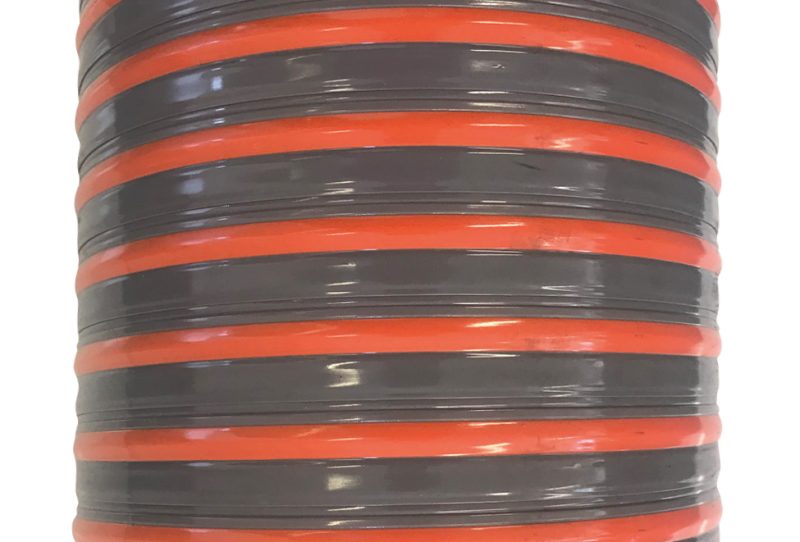

Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.CUS20
Internal Dia. Inches2”
Internal Dia. mm50.8
External Dia mm58.8
Wall Thickness Overall mm4.0
Weight kg/m0.85
Min Bend Radius220
Vacuum m of H2O9
Working Pressure Bar5
Coil Length Metres30
Product Ref.CUS25
Internal Dia. Inches2½”
Internal Dia. mm63.5
External Dia mm71.4
Wall Thickness Overall mm4.0
Weight kg/m1.15
Min Bend Radius250
Vacuum m of H2O9
Working Pressure Bar4
Coil Length Metres30
Product Ref.CUS30
Internal Dia. Inches3”
Internal Dia. mm76.0
External Dia mm85.2
Wall Thickness Overall mm4.6
Weight kg/m1.45
Min Bend Radius330
Vacuum m of H2O9
Working Pressure Bar4
Coil Length Metres30
Product Ref.CUS35
Internal Dia. Inches3½”
Internal Dia. mm90.0
External Dia mm100.0
Wall Thickness Overall mm5.0
Weight kg/m2.00
Min Bend Radius400
Vacuum m of H2O9
Working Pressure Bar3
Coil Length Metres30
Product Ref.CUS40
Internal Dia. Inches4”
Internal Dia. mm102.0
External Dia mm111.6
Wall Thickness Overall mm4.8
Weight kg/m2.20
Min Bend Radius430
Vacuum m of H2O9
Working Pressure Bar3
Coil Length Metres30
Product Ref.CUS50
Internal Dia. Inches5”
Internal Dia. mm127.0
External Dia mm139.0
Wall Thickness Overall mm6.0
Weight kg/m3.20
Min Bend Radius550
Vacuum m of H2O9
Working Pressure Bar2.5
Coil Length Metres30; 4.57* & 6.10*
Product Ref.CUS60
Internal Dia. Inches6”
Internal Dia. mm152.0
External Dia mm166.4
Wall Thickness Overall mm7.2
Weight kg/m4.30
Min Bend Radius700
Vacuum m of H2O9
Working Pressure Bar2
Coil Length Metres10; 4.57* & 6.10*
* Straight cured lengths
(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
