CPU

Polyurethane Ducting Hose

agricultureconstructionindustrialmarineminingrail

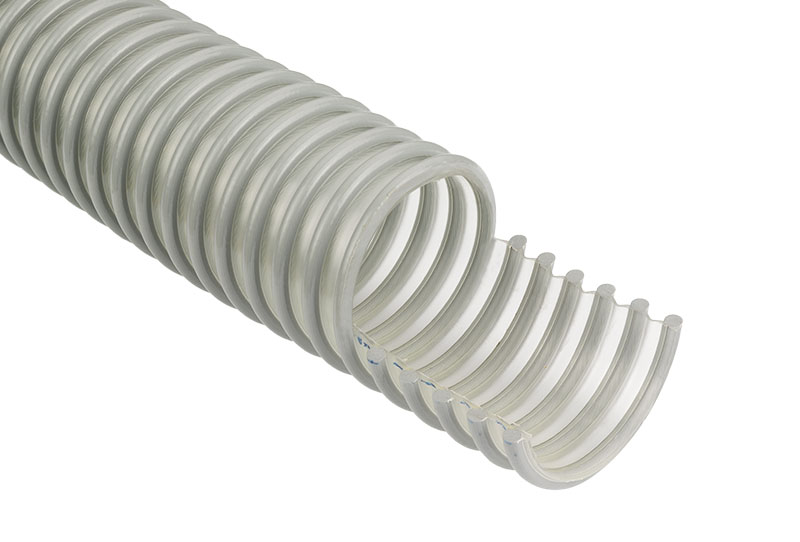

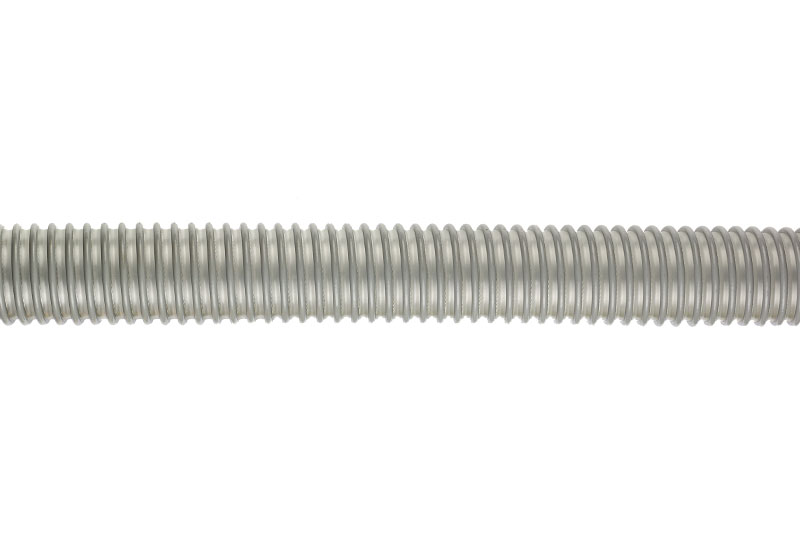

High flexibility Polyurethane ducting hose, reinforced with a semi-rigid crush resistant PVC helix. CPU ducting is manufactured from polyether polyurethane offering excellent resistance to hydrolysis. It is tough, flexible and extremely durable under normal operating conditions. The cross section is maintained even when highly flexed. Minimum frictional loss is achieved by the smooth bore.

Flex
Abrasion
Smooth Outer No
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.CPU10
Internal Dia. Inches1”
Internal Dia. mm25.4
External Dia mm31.0
Wall Thickness Overall mm2.8
Weight kg/m0.14
Min Bend Radius25
Vacuum m of H2O5
Working Pressure Bar1.0
Coil Length Metres20 / 10
Product Ref.CPUM28
Internal Dia. InchesMetric
Internal Dia. mm28.0
External Dia mm33.8
Wall Thickness Overall mm2.9
Weight kg/m0.16
Min Bend Radius30
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres20
Product Ref.CPUM30
Internal Dia. InchesMetric
Internal Dia. mm30.0
External Dia mm35.8
Wall Thickness Overall mm2.9
Weight kg/m0.17
Min Bend Radius32
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres20
Product Ref.CPU12
Internal Dia. Inches1¼”
Internal Dia. mm32.0
External Dia mm38.4
Wall Thickness Overall mm3.2
Weight kg/m0.2
Min Bend Radius35
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres20 / 10
Product Ref.CPUM35
Internal Dia. InchesMetric
Internal Dia. mm35.0
External Dia mm41.0
Wall Thickness Overall mm3.0
Weight kg/m0.21
Min Bend Radius38
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres20
Product Ref.CPU15
Internal Dia. Inches1½”
Internal Dia. mm38.0
External Dia mm44.4
Wall Thickness Overall mm3.2
Weight kg/m0.23
Min Bend Radius40
Vacuum m of H2O5
Working Pressure Bar0.5
Coil Length Metres20 / 10
Product Ref.CPUM40
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm46.0
Wall Thickness Overall mm3.0
Weight kg/m0.23
Min Bend Radius45
Vacuum m of H2O5
Working Pressure Bar-
Coil Length Metres20
Product Ref.CPUM45
Internal Dia. InchesMetric
Internal Dia. mm45.0
External Dia mm51.6
Wall Thickness Overall mm3.3
Weight kg/m0.29
Min Bend Radius51
Vacuum m of H2O5
Working Pressure Bar-
Coil Length Metres20
Product Ref.CPU20
Internal Dia. Inches2”
Internal Dia. mm51.0
External Dia mm59.0
Wall Thickness Overall mm4.0
Weight kg/m0.4
Min Bend Radius60
Vacuum m of H2O5
Working Pressure Bar-
Coil Length Metres20 / 10
Product Ref.CPUM60
Internal Dia. InchesMetric
Internal Dia. mm60.0
External Dia mm68.0
Wall Thickness Overall mm4.0
Weight kg/m0.46
Min Bend Radius63
Vacuum m of H2O4
Working Pressure Bar-
Coil Length Metres20
Product Ref.CPU25
Internal Dia. Inches2½”
Internal Dia. mm63.0
External Dia mm70.6
Wall Thickness Overall mm3.8
Weight kg/m0.45
Min Bend Radius76
Vacuum m of H2O4
Working Pressure Bar-
Coil Length Metres20 / 10
Product Ref.CPU30
Internal Dia. Inches3”
Internal Dia. mm76.0
External Dia mm85.6
Wall Thickness Overall mm4.8
Weight kg/m0.7
Min Bend Radius80
Vacuum m of H2O4
Working Pressure Bar-
Coil Length Metres20 / 10
Product Ref.CPUM80
Internal Dia. InchesMetric
Internal Dia. mm80.0
External Dia mm89.6
Wall Thickness Overall mm4.8
Weight kg/m0.71
Min Bend Radius90
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres20
Product Ref.CPU35
Internal Dia. Inches3½”
Internal Dia. mm90.0
External Dia mm99.6
Wall Thickness Overall mm4.8
Weight kg/m0.75
Min Bend Radius102
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres20 / 10
Product Ref.CPU40
Internal Dia. Inches4”
Internal Dia. mm102.0
External Dia mm112.0
Wall Thickness Overall mm5.0
Weight kg/m0.8
Min Bend Radius127
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres20 / 10 / 5
Product Ref.CPU50
Internal Dia. Inches5”
Internal Dia. mm127.0
External Dia mm139.0
Wall Thickness Overall mm6.0
Weight kg/m1.3
Min Bend Radius148
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres20
Product Ref.CPUM140
Internal Dia. Inches5½"
Internal Dia. mm140.0
External Dia mm152.2
Wall Thickness Overall mm6.1
Weight kg/m1.41
Min Bend Radius152
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres20
Product Ref.CPU60
Internal Dia. Inches6”
Internal Dia. mm152.0
External Dia mm164.4
Wall Thickness Overall mm6.2
Weight kg/m1.5
Min Bend Radius203
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres20 / 5
Product Ref.CPU80
Internal Dia. Inches8”
Internal Dia. mm203.0
External Dia mm215.4
Wall Thickness Overall mm6.2
Weight kg/m2.3
Min Bend Radius254
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres10
Product Ref.CPU100
Internal Dia. Inches10"
Internal Dia. mm254.0
External Dia mm269.0
Wall Thickness Overall mm7.5
Weight kg/m3
Min Bend Radius
Vacuum m of H2O3
Working Pressure Bar-
Coil Length Metres10

(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

CPU polyether polyurethane ducting is
suitable for use in abrasive applications on industrial vacuum cleaners and for the extraction of fumes, grit, sugar, grain, wood chippings & sawdust.

Construction

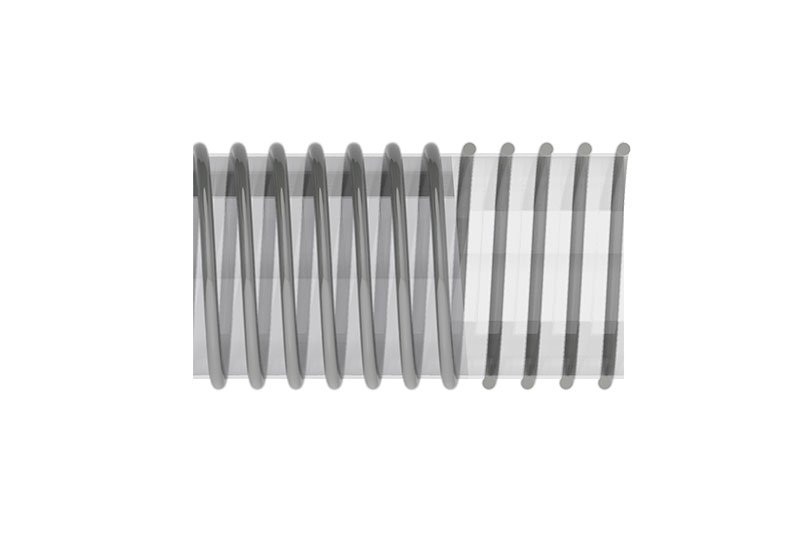

Rigid crush resistant anti-shock
PVC spiral helix encapsulated in clear flexible polyurethane cover, with a smooth inside wall.

Colour

Standard – Clear with Grey Helix

Temperature Range

-25°C to +85°C

Size Range

1” to 10”

Standard Length

20m Coils Up to 6″ 10m Coils Over 6″
Other lengths available subject to minimum order quantity

Special Features

  • Tough, extremely flexible and durable
  • Excellent abrasion resistance
  • Excellent resistance to hydrolysis
  • Non-toxic EU10-2011 approved materials
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance
