CDXE

Super Elastic Water Delivery Hose

agricultureconstructiondomesticindustrialminingrail

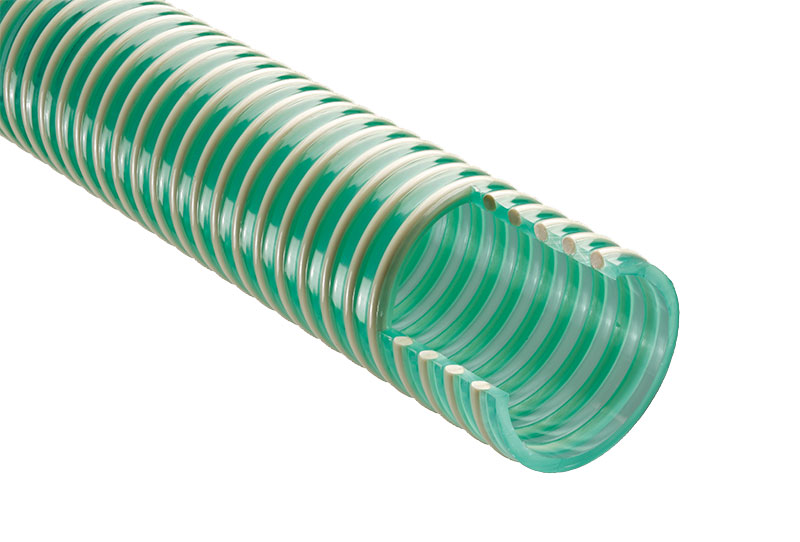

A PVC hose, manufactured from super elastic compounds to give increased flexibility, reinforced with a semi-rigid crush resistant PVC helix. It is tough, flexible and extremely durable under normal operating conditions. It has outstanding resistance to the effects of weather. Minimum frictional loss is achieved by the smooth bore.

Flex
Abrasion
Smooth Outer Yes
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.CDXE05
Internal Dia. Inches½”
Internal Dia. mm12.0
External Dia mm17.2
Wall Thickness Overall mm2.6
Weight kg/m0.17
Min Bend Radius50
Vacuum m of H2O7
Working Pressure Bar10
Coil Length Metres30 / 50
Product Ref.CDXE06
Internal Dia. Inches⅝”
Internal Dia. mm16.0
External Dia mm22.0
Wall Thickness Overall mm3
Weight kg/m0.20
Min Bend Radius64
Vacuum m of H2O7
Working Pressure Bar9.5
Coil Length Metres30 / 50
Product Ref.CDXE07
Internal Dia. Inches¾”
Internal Dia. mm19.0
External Dia mm25.6
Wall Thickness Overall mm3.3
Weight kg/m0.28
Min Bend Radius76
Vacuum m of H2O7
Working Pressure Bar9
Coil Length Metres30 / 50
Product Ref.CDXEM20
Internal Dia. InchesMetric
Internal Dia. mm20.0
External Dia mm26.6
Wall Thickness Overall mm3.3
Weight kg/m0.30
Min Bend Radius75
Vacuum m of H2O7
Working Pressure Bar8
Coil Length Metres30 / 50
Product Ref.CDXEM25
Internal Dia. InchesMetric
Internal Dia. mm25.0
External Dia mm31.6
Wall Thickness Overall mm3.3
Weight kg/m0.37
Min Bend Radius120
Vacuum m of H2O7
Working Pressure Bar8
Coil Length Metres30 / 50
Product Ref.CDXE10
Internal Dia. Inches1”
Internal Dia. mm25.4
External Dia mm32.0
Wall Thickness Overall mm3.3
Weight kg/m0.39
Min Bend Radius102
Vacuum m of H2O7
Working Pressure Bar8
Coil Length Metres30 / 50
Product Ref.CDXEM28
Internal Dia. InchesMetric
Internal Dia. mm28.0
External Dia mm34.8
Wall Thickness Overall mm3.4
Weight kg/m0.42
Min Bend Radius130
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CDXEM30
Internal Dia. InchesMetric
Internal Dia. mm30.0
External Dia mm37.2
Wall Thickness Overall mm3.6
Weight kg/m0.45
Min Bend Radius140
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CDXE12
Internal Dia. Inches1¼”
Internal Dia. mm32.0
External Dia mm39.6
Wall Thickness Overall mm3.8
Weight kg/m0.47
Min Bend Radius127
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CDXEM35
Internal Dia. InchesMetric
Internal Dia. mm35.0
External Dia mm42.8
Wall Thickness Overall mm3.9
Weight kg/m0.52
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CDXE15
Internal Dia. Inches1½”
Internal Dia. mm38.0
External Dia mm46.0
Wall Thickness Overall mm4
Weight kg/m0.56
Min Bend Radius152
Vacuum m of H2O7
Working Pressure Bar6.5
Coil Length Metres30 / 50
Product Ref.CDXEM40
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm48.2
Wall Thickness Overall mm4.1
Weight kg/m0.61
Min Bend Radius180
Vacuum m of H2O7
Working Pressure Bar6.5
Coil Length Metres30 / 50
Product Ref.CDXEM45
Internal Dia. InchesMetric
Internal Dia. mm45.0
External Dia mm53.4
Wall Thickness Overall mm4.2
Weight kg/m0.70
Min Bend Radius200
Vacuum m of H2O7
Working Pressure Bar6.5
Coil Length Metres30 / 50
Product Ref.CDXE20
Internal Dia. Inches2”
Internal Dia. mm51.6
External Dia mm60.2
Wall Thickness Overall mm4.3
Weight kg/m0.82
Min Bend Radius204
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.CDXEM60
Internal Dia. InchesMetric
Internal Dia. mm60.0
External Dia mm68.6
Wall Thickness Overall mm4.3
Weight kg/m0.98
Min Bend Radius270
Vacuum m of H2O7
Working Pressure Bar5
Coil Length Metres30 / 50
Product Ref.CDXE25
Internal Dia. Inches2½”
Internal Dia. mm63.5
External Dia mm72.1
Wall Thickness Overall mm4.3
Weight kg/m1.07
Min Bend Radius254
Vacuum m of H2O7
Working Pressure Bar5
Coil Length Metres30 / 50
Product Ref.CDXE30
Internal Dia. Inches3”
Internal Dia. mm76.0
External Dia mm85.8
Wall Thickness Overall mm4.9
Weight kg/m1.36
Min Bend Radius304
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30 / 50
Product Ref.CDXEM80
Internal Dia. InchesMetric
Internal Dia. mm80.0
External Dia mm90.6
Wall Thickness Overall mm5.3
Weight kg/m1.48
Min Bend Radius360
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30 / 50
Product Ref.CDXE35
Internal Dia. Inches3½”
Internal Dia. mm89.0
External Dia mm101.0
Wall Thickness Overall mm6
Weight kg/m1.77
Min Bend Radius356
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30
Product Ref.CDXE40
Internal Dia. Inches4”
Internal Dia. mm102.0
External Dia mm115.0
Wall Thickness Overall mm6
Weight kg/m2.13
Min Bend Radius406
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30

(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

Water, slurries and powders. This product is particularly popular in the agricultural, horticultural, marine and construction industries.

Construction

Crush resistant anti-shock PVC spiral helix encapsulated in a flexible PVC cover, with a smooth inside wall.

Colour

Standard – Transparent Green, Transparent Yellow, Black

Temperature Range

-10°C to +55°C

Size Range

1⁄2” to 4”
20mm to 80mm

Standard Length

30m Coils
50m Coils also available up to 80mm

Special Features

  • Tough, super flexible and durable
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance

Compliance
