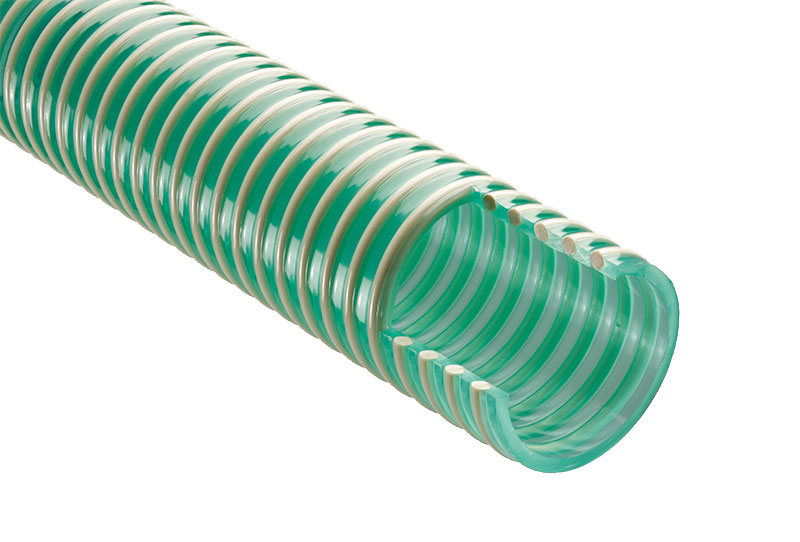

Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.CDLXE05
Internal Dia. Inches½”
Internal Dia. mm12.0
External Dia mm16.0
Wall Thickness Overall mm1.7
Weight kg/m0.11
Min Bend Radius57
Vacuum m of H2O7
Working Pressure Bar3.2
Coil Length Metres30 / 50
Product Ref.CDLXE06
Internal Dia. Inches⅝”
Internal Dia. mm16.0
External Dia mm21.0
Wall Thickness Overall mm2.5
Weight kg/m0.17
Min Bend Radius72
Vacuum m of H2O7
Working Pressure Bar3.2
Coil Length Metres30 / 50
Product Ref.CDLXE07
Internal Dia. Inches¾”
Internal Dia. mm19.0
External Dia mm24.0
Wall Thickness Overall mm2.5
Weight kg/m0.19
Min Bend Radius86
Vacuum m of H2O7
Working Pressure Bar3
Coil Length Metres30 / 50
Product Ref.CDLXEM20
Internal Dia. InchesMetric
Internal Dia. mm20.0
External Dia mm25.2
Wall Thickness Overall mm2.6
Weight kg/m0.20
Min Bend Radius110
Vacuum m of H2O7
Working Pressure Bar2.9
Coil Length Metres30 / 50
Product Ref.CDLXE10
Internal Dia. Inches1"
Internal Dia. mm25.4
External Dia mm31.0
Wall Thickness Overall mm2.8
Weight kg/m0.27
Min Bend Radius114
Vacuum m of H2O7
Working Pressure Bar2.8
Coil Length Metres30 / 50
Product Ref.CDLXEM28
Internal Dia. InchesMetric
Internal Dia. mm28.0
External Dia mm33.8
Wall Thickness Overall mm2.9
Weight kg/m0.30
Min Bend Radius125
Vacuum m of H2O7
Working Pressure Bar0.27
Coil Length Metres30 / 50
Product Ref.CDLXEM30
Internal Dia. InchesMetric
Internal Dia. mm30.0
External Dia mm36.0
Wall Thickness Overall mm3
Weight kg/m0.33
Min Bend Radius136
Vacuum m of H2O7
Working Pressure Bar2.7
Coil Length Metres30 / 50
Product Ref.CDLXE12
Internal Dia. Inches1¼”
Internal Dia. mm32.0
External Dia mm38.0
Wall Thickness Overall mm3.1
Weight kg/m0.35
Min Bend Radius143
Vacuum m of H2O7
Working Pressure Bar2.7
Coil Length Metres30 / 50
Product Ref.CDLXEM35
Internal Dia. InchesMetric
Internal Dia. mm35.0
External Dia mm41.6
Wall Thickness Overall mm3.3
Weight kg/m0.42
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar2.5
Coil Length Metres30 / 50
Product Ref.CDLXE15
Internal Dia. Inches1 1/2"
Internal Dia. mm38.0
External Dia mm45.0
Wall Thickness Overall mm3.5
Weight kg/m0.46
Min Bend Radius171
Vacuum m of H2O7
Working Pressure Bar2.3
Coil Length Metres30 / 50
Product Ref.CDLXEM40
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm47.0
Wall Thickness Overall mm3.5
Weight kg/m0.48
Min Bend Radius185
Vacuum m of H2O7
Working Pressure Bar2.2
Coil Length Metres30 / 50
Product Ref.CDLXEM45
Internal Dia. InchesMetric
Internal Dia. mm45.0
External Dia mm52.0
Wall Thickness Overall mm3.5
Weight kg/m0.64
Min Bend Radius213
Vacuum m of H2O7
Working Pressure Bar2.1
Coil Length Metres30 / 50
Product Ref.CDLXE20
Internal Dia. Inches2”
Internal Dia. mm51.6
External Dia mm59.6
Wall Thickness Overall mm4.0
Weight kg/m0.74
Min Bend Radius230
Vacuum m of H2O7
Working Pressure Bar2
Coil Length Metres30 / 50
(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.
