CD

Water Delivery Hose

agricultureconstructionindustrial

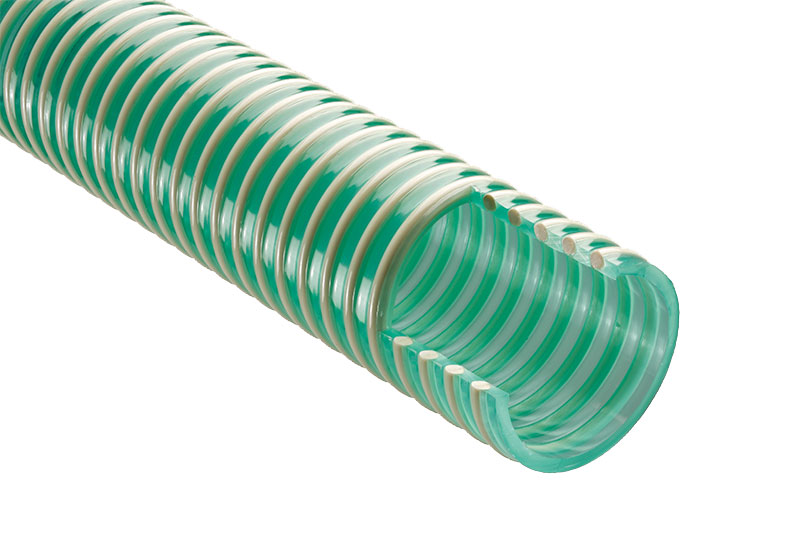

A PVC hose, reinforced with a semi-rigid crush resistant PVC helix. It is tough, flexible and extremely durable under normal operating conditions. It has outstanding resistance to the effects of weather.
Minimum frictional loss is achieved by the smooth bore.

Flex
Abrasion
Smooth Outer Yes
Product Ref.
Internal Dia. Inches
Internal Dia. mm
External Dia mm
Wall Thickness Overall mm
Weight kg/m
Min Bend Radius
Vacuum m of H2O
Working Pressure Bar
Coil Length Metres
Quantity
Product Ref.CD05
Internal Dia. Inches½”
Internal Dia. mm12.0
External Dia mm17.2
Wall Thickness Overall mm2.6
Weight kg/m0.16
Min Bend Radius57
Vacuum m of H2O7
Working Pressure Bar10
Coil Length Metres30 / 50
Product Ref.CD06
Internal Dia. Inches⅝”
Internal Dia. mm16.0
External Dia mm21.2
Wall Thickness Overall mm2.6
Weight kg/m0.26
Min Bend Radius72
Vacuum m of H2O7
Working Pressure Bar9.5
Coil Length Metres30 / 50
Product Ref.CD07
Internal Dia. Inches¾”
Internal Dia. mm19.0
External Dia mm24.6
Wall Thickness Overall mm2.8
Weight kg/m0.28
Min Bend Radius86
Vacuum m of H2O7
Working Pressure Bar9
Coil Length Metres30 / 50
Product Ref.CDM20
Internal Dia. InchesMetric
Internal Dia. mm20.0
External Dia mm26.2
Wall Thickness Overall mm3.1
Weight kg/m0.28
Min Bend Radius75
Vacuum m of H2O7
Working Pressure Bar8
Coil Length Metres30 / 50
Product Ref.CDM25
Internal Dia. InchesMetric
Internal Dia. mm25.0
External Dia mm31.6
Wall Thickness Overall mm3.3
Weight kg/m0.33
Min Bend Radius120
Vacuum m of H2O7
Working Pressure Bar8
Coil Length Metres30 / 50
Product Ref.CD10
Internal Dia. Inches1”
Internal Dia. mm25.4
External Dia mm32.0
Wall Thickness Overall mm3.3
Weight kg/m0.33
Min Bend Radius114
Vacuum m of H2O7
Working Pressure Bar8
Coil Length Metres30 / 50
Product Ref.CDM28
Internal Dia. InchesMetric
Internal Dia. mm28.0
External Dia mm34.8
Wall Thickness Overall mm3.4
Weight kg/m0.38
Min Bend Radius130
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CDM30
Internal Dia. InchesMetric
Internal Dia. mm30.0
External Dia mm37.0
Wall Thickness Overall mm3.5
Weight kg/m0.42
Min Bend Radius140
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CD12
Internal Dia. Inches1¼”
Internal Dia. mm32.0
External Dia mm39.2
Wall Thickness Overall mm3.6
Weight kg/m0.46
Min Bend Radius143
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CDM35
Internal Dia. InchesMetric
Internal Dia. mm35.0
External Dia mm41.8
Wall Thickness Overall mm3.4
Weight kg/m0.50
Min Bend Radius160
Vacuum m of H2O7
Working Pressure Bar7
Coil Length Metres30 / 50
Product Ref.CD15
Internal Dia. Inches1½”
Internal Dia. mm38.0
External Dia mm45.4
Wall Thickness Overall mm3.7
Weight kg/m0.55
Min Bend Radius171
Vacuum m of H2O7
Working Pressure Bar6.5
Coil Length Metres30 / 50
Product Ref.CDM40
Internal Dia. InchesMetric
Internal Dia. mm40.0
External Dia mm47.6
Wall Thickness Overall mm3.8
Weight kg/m0.61
Min Bend Radius180
Vacuum m of H2O7
Working Pressure Bar6.5
Coil Length Metres30 / 50
Product Ref.CDM45
Internal Dia. InchesMetric
Internal Dia. mm45.0
External Dia mm52.8
Wall Thickness Overall mm3.9
Weight kg/m0.67
Min Bend Radius200
Vacuum m of H2O7
Working Pressure Bar6.5
Coil Length Metres30 / 50
Product Ref.CD20
Internal Dia. Inches2”
Internal Dia. mm51.6
External Dia mm59.8
Wall Thickness Overall mm4.1
Weight kg/m0.81
Min Bend Radius230
Vacuum m of H2O7
Working Pressure Bar6
Coil Length Metres30 / 50
Product Ref.CDM60
Internal Dia. InchesMetric
Internal Dia. mm60.0
External Dia mm69.0
Wall Thickness Overall mm4.5
Weight kg/m0.97
Min Bend Radius270
Vacuum m of H2O7
Working Pressure Bar5
Coil Length Metres30 / 50
Product Ref.CD25
Internal Dia. Inches2½”
Internal Dia. mm63.5
External Dia mm71.9
Wall Thickness Overall mm4.2
Weight kg/m1.04
Min Bend Radius284
Vacuum m of H2O7
Working Pressure Bar5
Coil Length Metres30 / 50
Product Ref.CD30
Internal Dia. Inches3”
Internal Dia. mm76.0
External Dia mm86.4
Wall Thickness Overall mm5.2
Weight kg/m1.38
Min Bend Radius342
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30 / 50
Product Ref.CDM80
Internal Dia. InchesMetric
Internal Dia. mm80.0
External Dia mm90.6
Wall Thickness Overall mm5.3
Weight kg/m1.56
Min Bend Radius360
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30 / 50
Product Ref.CD35
Internal Dia. Inches3½”
Internal Dia. mm90.0
External Dia mm100.4
Wall Thickness Overall mm5.2
Weight kg/m1.80
Min Bend Radius430
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30
Product Ref.CD40
Internal Dia. Inches4”
Internal Dia. mm102.0
External Dia mm114.6
Wall Thickness Overall mm6.3
Weight kg/m2.16
Min Bend Radius459
Vacuum m of H2O7
Working Pressure Bar4
Coil Length Metres30
Product Ref.CD50
Internal Dia. Inches5”
Internal Dia. mm127.0
External Dia mm139.6
Wall Thickness Overall mm6.3
Weight kg/m3.20
Min Bend Radius680
Vacuum m of H2O7
Working Pressure Bar3.7
Coil Length Metres30
Product Ref.CDM140
Internal Dia. Inches5½”
Internal Dia. mm140.0
External Dia mm153.6
Wall Thickness Overall mm6.8
Weight kg/m3.77
Min Bend Radius730
Vacuum m of H2O7
Working Pressure Bar3
Coil Length Metres30
Product Ref.CD60
Internal Dia. Inches6”
Internal Dia. mm152.0
External Dia mm166.2
Wall Thickness Overall mm7.1
Weight kg/m4.22
Min Bend Radius810
Vacuum m of H2O7
Working Pressure Bar3
Coil Length Metres30
Product Ref.CD80
Internal Dia. Inches8"
Internal Dia. mm203.0
External Dia mm223.2
Wall Thickness Overall mm10.1
Weight kg/m8.50
Min Bend Radius900
Vacuum m of H2O7
Working Pressure Bar1.5
Coil Length Metres10

(i) Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20°C. If the temperature increases, please refer to the temperature pressure charts.
(ii) Lengths detailed above are as standard, however variations may be available subject to minimum order quantities. Weights are approximate dependent upon working tolerance and
density of materials.
(iii) Bending diameter information is intended as a guide to the minimum bend radius at 20°C ambient temperature without restricting the bore. It does not mean that the hose cannot be
bent below the given dimensions but restriction is likely to occur.

Applications

Water, slurries and powders. This product is particularly popular in the agricultural, horticultural, marine and construction industries.

Construction

Crush resistant anti-shock PVC spiral helix encapsulated in a flexible PVC cover, with a smooth inside wall.

Colour

Standard – Transparent Green, Transparent Yellow, Black

Temperature Range

-10°C to +55°C

Size Range

1⁄2” to 8”
20mm to 80mm

Standard Length

30m Coils up to 6″
50m Coils also available up to 80mm
10m Straight cured lengths over 6″

Special Features

  • Tough, super flexible and durable
  • Outstanding resistance to the effects of weather
  • Minimum frictional loss is achieved by the smooth bore
  • Excellent chemical resistance
